Wombat Press – Hydraulic forging press With Digital controller

$18,999.00 Inc. GST

Available on backorder

Freight options

These are freight options to a freight depot in the nearest capital city, or metropolitan area. Includes insurance and GST.
*If not being shipped to a freight depot (usually TNT / Fedex) it must be a commercial premesis with a forklift available, within the capital city metro area.
**If a tail lift truck and, or, a delivery to a residential address is nessasary please contact us with details for a specific quote.
*** If you wish to arrange your own freight use post code 5251 (Mount Barker) and dimensions: 120 x 120 x 220cm (LxWxH) 400kg, and select the option below.

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
Category:

Description

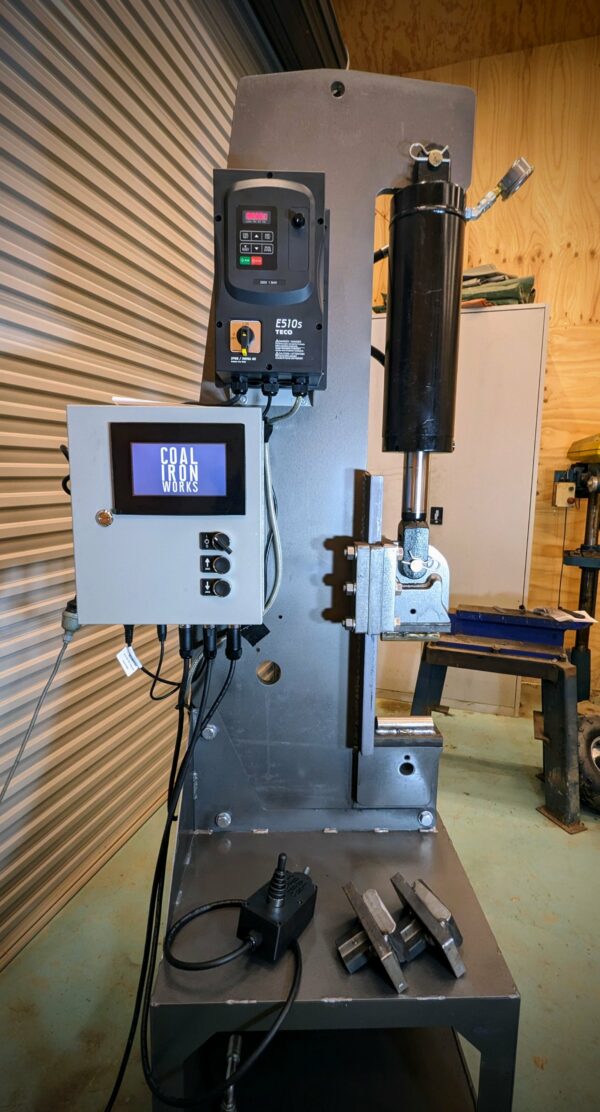

The Wombat Press is a heavy duty, hard working C frame style forging press. Capable of exerting 25t of force with a no load travel speed of 38.1mm (1 1/2″) per second, all while running on a standard 10a power point.

The Wombat is built to be compact, but sturdy, Fast, and accurate. With its small footprint it can fit into almost any workspace.



Power:                       Single phase 10a (regular power point)

Force:                         Maximum 30t @3369psi, Working 25t force @2850psi

Speed:                       Variable speed, adjustable on VSD for fine control,

Max Low pressure stage 38.1mm/sec (1 ½” / sec)

Max High pressure stage 8.79mm/sec (11/32” /sec)

Carriage:                   Adjustable slides

Stroke:                       304mm (12”)

Throat:                       No die plates 381mm (15”)

With blank die plates 330mm (13”)

Die plate size:          75 x 150mm

Physical size:           800mm wide, 550mm deep, 2300mm High

369Kg working weight (depending on tooling)

Oil Capacity:             75L (ISO32 hydraulic oil)

Warranty:                  24 months (excludes tooling and wear parts)



Price Is for an assembled, tested press, full of oil** ready to plug in. Pickup from Aldgate, SA.

Local delivery, and interstate freight available, please contact before ordering for a quote. Some assembly may be required.

**Due to transport restrictions we cannot ship these with oil, you will require approx 70L of ISO32 hydraulic oil to fill the reservoir before operation. The system will however be fully tested and primed.

*we are accepting back orders on these presses, please contact prior to ordering for a lead time as they may be made to order.

Additional information

Weight 390 kg
