Scorpion 72 – 2hp Fixed speed

803.43 Inc. GST

The Scorpion is the Australian made belt grinder for entry level knife makers to professional blacksmiths. With more power, more speed, big platen and small footprint; the Scorpion grinder is in a league of its own.

Out of Stock
Provide your Email so we can email you when product comes in-stock.
GUARANTEED SAFE CHECKOUT
SKU: SC72 2hp Categories: ,

Description

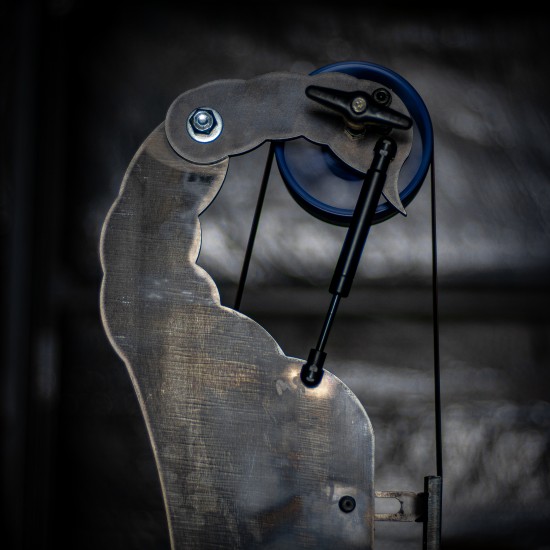

Scorpion GRINDER

The Scorpion known for its fast acting, effective sting; this grinder is no different. With more power, more speed, big platen and small footprint; the Scorpion grinder is in a league of its own. Perfect for both beginners and professionals.

Features include:

  • 2 x 72” or 2 x 48” Belt Capacity
  • Solid 10mm steel frame, laser cut for accuracy
  • Ceramic platen backrest
  • 6061 aluminium tracking and drive wheels
  • Huge 250mm drive wheel coupled with 2hp and 3hp motors ultimate performance
  • The only grinder in its class built to run the Cubitron II belts from 3M
  • Extended length platen backrest for greater control
  • Move from a 300mm flat platen to a 250mm slack belt without even stopping or making adjustments
  • 150 – 350mm contact wheel capability
  • Australian designed and built



Model comparison

Model  SC72 Frame SC72 2hp  SC72 3hp SC72 VSD
Dimension of Frame (LxWxH)  250 x 400 x 850mm 250 x 400 x 850mm 250 x 400 x 850mm 250 x 400 x 850mm
Weight  Approx. 20kg Approx. 35kg  Approx. 35kg Approx. 40kg
Electrical Specifications 240v 10a  240v 15a 240v 10a
Belt Size  2 x 72” 2 x 72”  2 x 72” 2 x 72”
Belt Speed  7500sfm fixed 7500sfm fixed 750 – 7500sfm
Environment  IP55  IP55 IP55 (indoor only)
Motor No Motor 2 hp, 2 pole 3hp, 2 pole 2hp, 4pole
Switchgear DOL Starter DOL Starter VSD control
